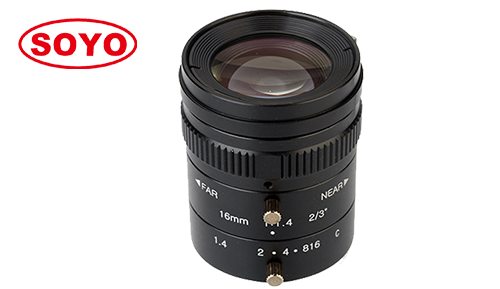

Product name:SMV1614-5M ( 16mm ) 2/3"
Product description:

FA Lens Features:

  • High resolution :      5.0 megapixel cover all 4K & 1080P
  • Large format:          2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture :          F1.4 big aperture makes imaging far better
  • Low distortion :        <1% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.




Model

SMV1614-5M

Resolution

5.0 Megapixel

Format  (inch)

2/3"

Focal Length  (mm)

16mm

B.F.L (mm )

21.57mm

Aperture  (Close)

F1.4 Manual Iris

Angle of View (°)

2/3"

38*30*22

1/2"

1/3"

M.O.D  (m)

0.2

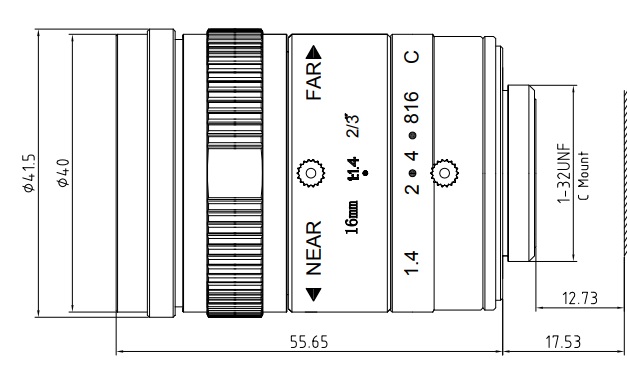

Size

Φ41.5*55.65

Distortion

<1%

Mount

C

Weight  (g)

182
