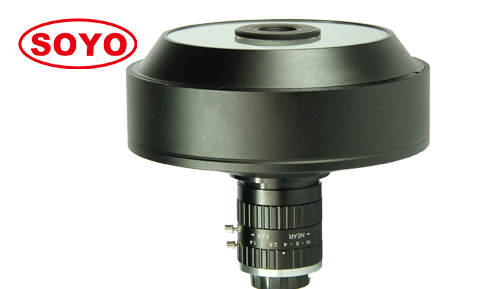

Product name:360° Out-wall Inspection Lenses 2/3"
Product description:

360° Out Surface Wall Imaging Lenses Low Distortion Industrial Pharmacy Factory Automation Machine Vision Lens ( 360度外壁检测镜头 )




Model

Resolution

Format

Image Circle

Aperture

W.D (mm)

FOV

Mount

SOD3601

5MP

1/3"

Φ3.6mm

F6.0-16

19-46.2

7.5*5.2 min

30*25 max

C

SOD3609

5MP

1/3"

Φ3.6mm

F6.0-16

9-46.52

7.5*6.4 min

30*25.6 max

C

SOD3602

5MP

1/1.8"

Φ5.32mm

F8.0-16

9-45.4

7.5*5.3 min

30*25 max

C

SOD3603

5MP

2/3"

Φ6.6mm

F8.0-16

14-48.2

7.5*4 min

30*23.4 max

C



Model

SOD3601

Sensor

1/3"

Image circle

Φ3.6

W.D

19-46.2mm

Aperture

F6.0~16

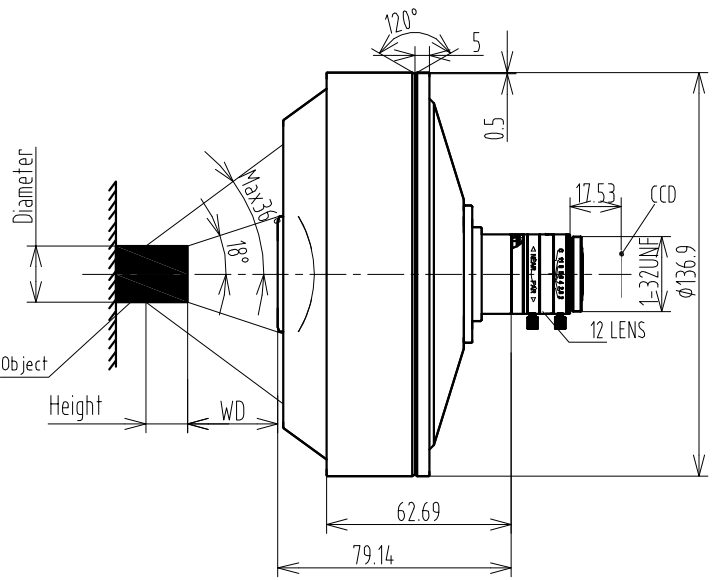

Diameter(mm)

Height (mm)

WD(mm)

FNo.

7.5

4.6

46.2

16

10

6.8

42.2

12

15

10.9

34.5

10

20

15.3

26.9

8

25

19.54

19

6

30





Model

SOD3602

Sensor

1/1.8"

Image circle

Φ5.32

W.D

9-45.4mm

Aperture

F8.0~16

Diameter(mm)

Height (mm)

WD(mm)

FNo.

7.5

5.3

45.4

16

10

7.7

41.5

16

15

11.86

33.8

12

20

16.5

26.2

12

25

20.7

18.5

10

30

25

9

8


Model

SOD3603

Sensor

2/3"

Image circle

Φ6.6

W.D

14-48.2mm

Aperture

F8.0~16

Diameter(mm)

Height (mm)

WD(mm)

FNo.

7.5

4

48.2

16

10

6.3

44.4

16

15

10.6

36.8

12

20

14.6

29.2

12

25

19.2

21.6

10

30

23.4

14

8


23.4

14

8



More Datasheet of 360 Degree Outwall Lens


* Instruction:
1) Compact design with 5 megapixel
2) Imaging with 360 degree
3) Working distance various

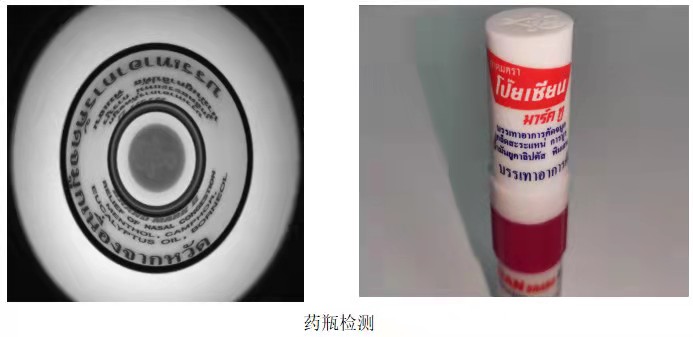

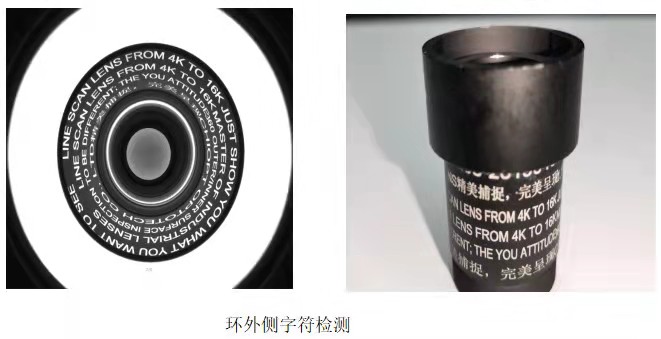

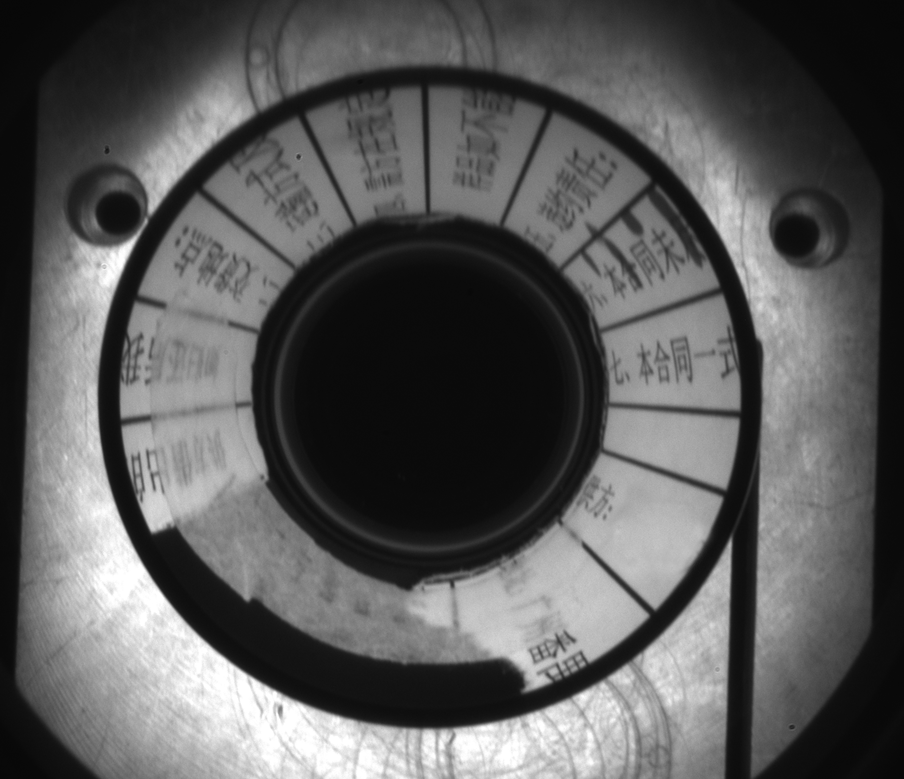

* Application: Inspection for bottle cap, container, screw thread, plastic injection parts, die-casting parts or any machining parts  ...

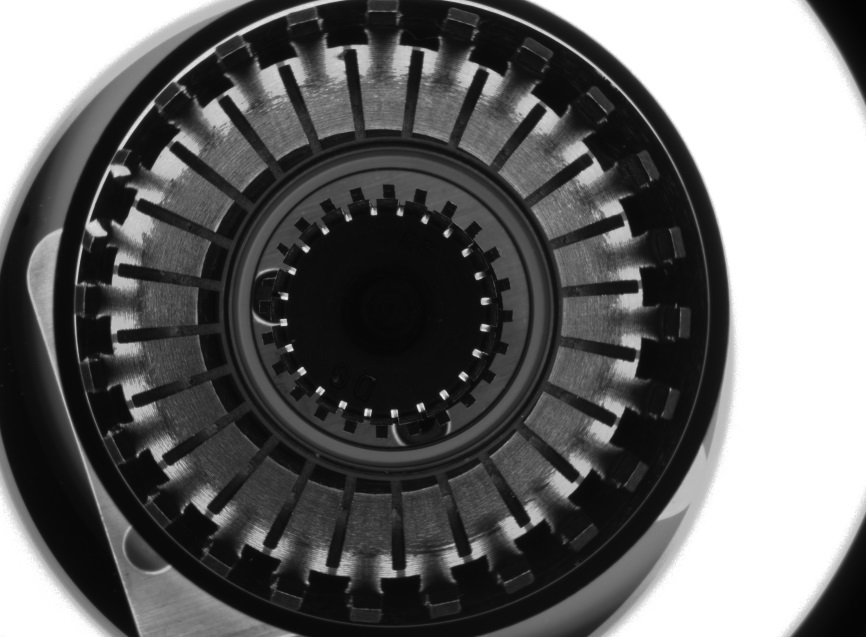

( Screw thread inspection outside by 360 degree )

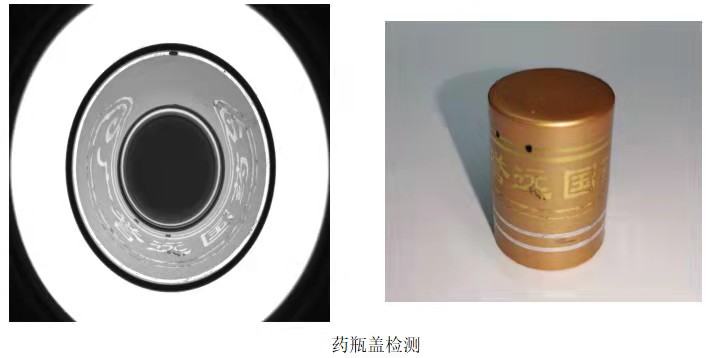

( Bottle Cap Outside Wall 360 Degree Inspection )
