Current：Home > Products - 4/3" FA Megapixel Lens - S43MV5020-10M ( 50mm ) 4/3"

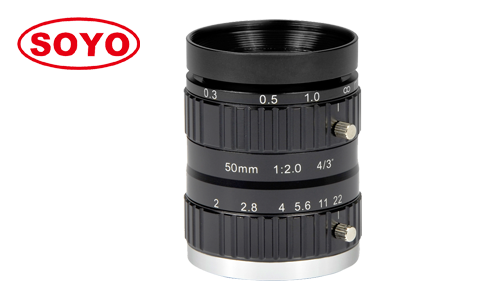

Product name：S43MV5020-10M ( 50mm ) 4/3"
Product description：


50mm 4/3" 10MP Megapixel Lenses Machine Vision FA <-0.14% Low Distortion Industrial Automation SMT AOI Semiconductor Color  Sort Recognition Positioning Measurement Camera CCTV Lens China Optics Asseccory

  • High resolution :      10 megapixel covering all 4K & 1080P
  • Large format:          4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -0.14% low distortion.
  • Small size:              Small size disign makes it various application
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.


Model 型号

S43MV5020-10M

Resolution 像素

10 Megapixel

Format 靶面

4/3"

Focal Length 焦距

50mm

B.F.L 光学后焦

20.29mm

Aperture (Close) 光圈

F2.0  Manual iris

Angle of View (°)

视场角 D*H*V

4/3"

26*21*15.7

1"

18.2*15*11

2/3"

/

M.O.D 最近物距

0.3m

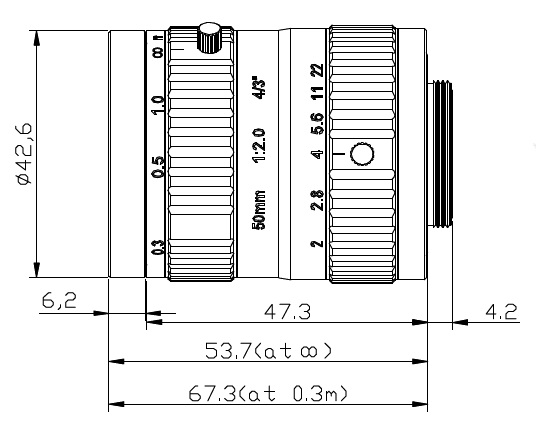

Size 尺寸

Φ42.6*67.3mm

Distortion 畸变

-0.14%

Filter Size 滤镜螺纹

M40.5*0.5

Mount 接口

C

Weight 重量

170g
