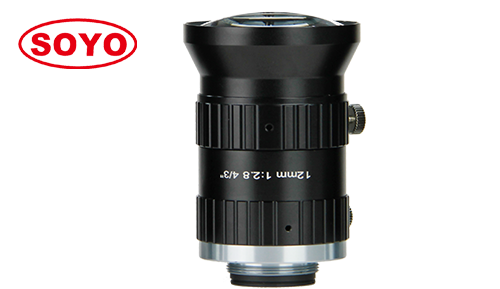

Product name：S43MV1228-20M ( 12mm ) 4/3"

Product description：

12mm 4/3" 20Megapixel Machine Vision Lenses FA Automation <2% Low Distortion Computer Vision Optical Industrial Camera Lens Positioning & Measurement Robotics AI Color Sorting SMT Medical AOI LifeScience

Download ： S43MV1228-20M

High resolution : 20 megapixel covering all 4K & 1080P
Large format: 4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion : <2% low distortion
Small size: Small size disign makes it various application
Magnification : 0.002x ~ 0.103x
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model 型号		S43MV1228-20M
Resolution 像素		20 Megapixel
Format 靶面		4/3"
Focal Length 焦距		12mm
B.F.L 光学后焦		10.6mm
Aperture (Close) 光圈		F2.8 Manual Iris
Angle of View (°) *视场角DHV*	4/3"	*83.47156.3*
	1"	*665542*
	2/3"	*483930*
M.O.D 最近物距		0.1m
Distortion 畸变		<2%
Filter size 滤镜螺纹		/

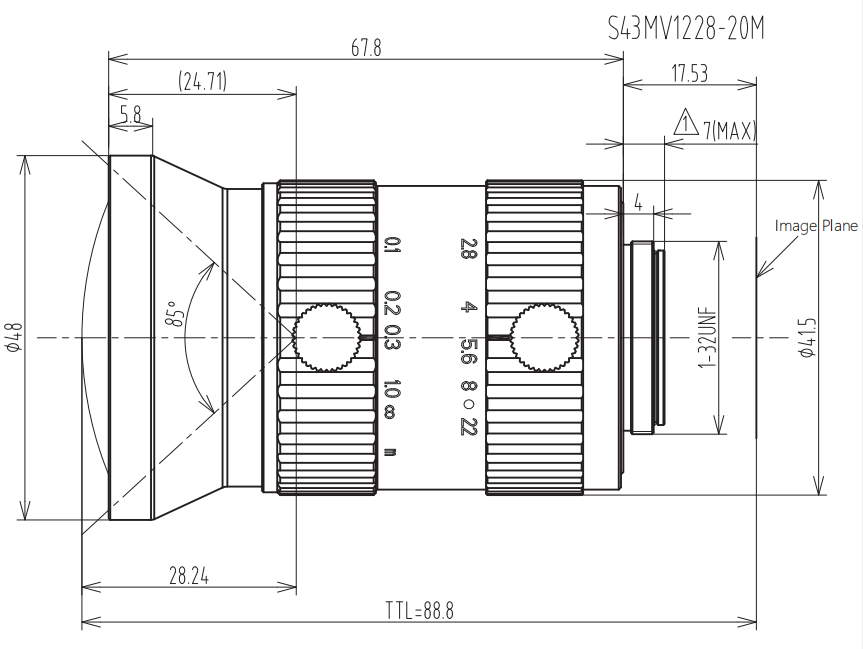

Size 尺寸		*Φ4876.27mm**
Mount 接口		C
Weight 重量		330g
